Fire Protection Solutions and Corrosion Protection Coating Systems for Data Centres and Fast-Track Data Centre Projects
Data centres place particular demands on structural fire protection. High densities of technical equipment, extensive cable and service routes, numerous fire compartments and short construction times require coordinated fire protection solutions that can be incorporated at the planning stage and implemented reliably.
Delivering projects with the highest requirements and numerous interfaces. Safely and efficiently.
The construction of data centres involves numerous project phases and stakeholders, from engineering and material selection through to execution, inspection and acceptance. To ensure that the specified fire protection systems perform reliably, all components and work stages must be precisely coordinated throughout the entire project.
Planning with foresight and responsibility.
For data centres, fire protection and corrosion protection systems must be precisely defined at the planning stage. The required documentation is not the only decisive factor; a clearly coordinated system build-up and reliable implementation on site are equally important.
Rudolf Hensel supports you in defining the appropriate fire protection solution from the initial planning stage through to execution and integrating it reliably into the project.
Planning certainty from the outset.
The result: a clearly defined fire protection solution that reliably connects planning, execution and acceptance.
Delivering efficiently and safely.
On site, the reliable performance and practical application of a fire protection system depend on correct execution. Substrate preparation, system build-up, ambient conditions and application must work together optimally.
Technical training, clear specifications and coordinated components help to avoid errors in selection and application and to reduce remedial work and delays.
Safe and efficient execution.
This enables the fire protection system to be implemented exactly as planned – with less uncertainty, remedial work and delay.
Your Benefits at a Glance
Tested systems and reliable planning foundations
Depending on the product and application, HENSOTHERM® and HENSOMASTIK® fire protection systems have European Technical Assessments (ETAs), German general construction technique permits (aBG), tests and classifications in accordance with relevant EN and DIN standards, as well as further national and international evidence. Technical Data Sheets, approval documentation, specification texts, BIM data and the Hensel Product Selector support planners and contractors in selecting and documenting suitable fire protection solutions.
Optimised for fast-track construction processes and prefabrication
Short construction periods and a high degree of prefabrication characterise many large data centre projects. Workshop-optimised HENSOTHERM® 2K fire protection systems allow high film thicknesses per coat, fast drying and high mechanical resistance during transport and installation. Pre-planned penetration seals, modular systems and C-FORM fire protection recess elements additionally support standardised and repeatable construction details – from the structural construction phase through to subsequent fit-out.
Durability and reduced maintenance requirements
Selected HENSOTHERM® steel fire protection systems have an assessed intended working life of at least 50 years for use category Z2 in accordance with their ETAs. Robust 2K systems combine fire resistance with high corrosion protection up to C5 very high in accordance with DIN EN ISO 12944. When used as intended, this can avoid scheduled renewal coatings and reduce maintenance requirements over the life cycle.
Documented environmental and material information
Environmental Product Declarations (EPDs), emissions testing and further product-specific environmental information are available for numerous HENSOTHERM® and HENSOMASTIK® products. Water-based, solvent-free and – for selected products – SVHC-free formulations support transparent material selection and can provide relevant data for building certification schemes such as DGNB, LEED or BREEAM.
Demonstrate
compliance reliably
Apply faster and
more reliably
Protect for
decades
Support sustainability
objectives
Tested Passive Fire Protection Systems for Load-Bearing Structures, Fire Compartments, Cable Routes, Joints and Service Penetrations – Developed for the Requirements of Modern, High-Performance and Rapidly Delivered Data Centres
From product selection to project acceptance: coating systems you can rely on
With HENSOTHERM® and HENSOMASTIK®, Rudolf Hensel offers tested passive fire protection systems for key areas of data centre construction – from steel and concrete structures to cable installations, penetration seals, joints and service penetrations.
Certified Fire Protection Systems for Steel and Concrete Structures
Steel fire protection: HENSOTHERM® 2K coating systems for fast-track data centre projects
When constructing large data centres, short project schedules, prefabricated components and precisely coordinated construction processes are crucial. HENSOTHERM® 920 KS and HENSOTHERM® 921 KS are specifically suited to the workshop coating of structural steelwork and therefore support industrial prefabrication away from the construction site.
The solvent-free 2K fire protection systems with 100% solids by volume allow high film thicknesses per coat and fast drying. Depending on the required dry film thickness, system build-up and ambient conditions, coated steel components may be ready for transport or application of the top coat as early as the following day. The chemically crosslinked coating provides high mechanical resistance and reduces the risk of damage during loading, transport and installation. Corrosion protection up to corrosivity category C5 very high in accordance with DIN EN ISO 12944 also allows coordinated system build-ups for technical buildings, energy centres, cooling facilities and other demanding areas of a data centre.
This allows coating work to be transferred from the construction site to the controlled workshop environment, processes to be carried out in parallel and coated steel components to be delivered ready for installation – a significant advantage for modular and time-critical data centre projects.

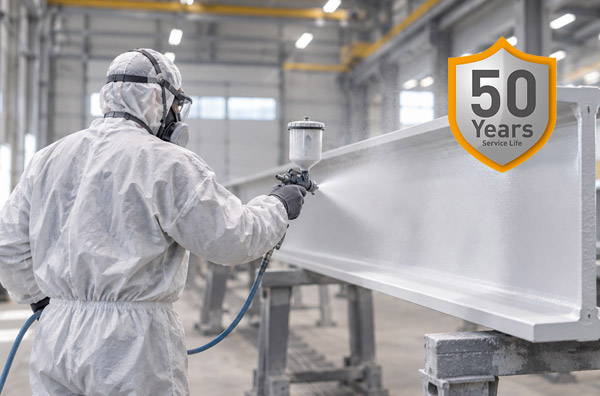

HENSOTHERM® 920 KS
The All-Rounder
Extremely robust, solvent-free 2K fire protection system with 100% solids by volume for fire resistance periods from 15 to 120 minutes. For internal and weather-exposed external applications.
| >> Go to HENSOTHERM® 920 KS |
HENSOTHERM® 921 KS
SVHC-free, HENSEL NEXT GENERATION
SVHC-free 2K fire protection coating in accordance with the REACH Regulation for sustainable building construction. Fire resistance periods from 15 to 120 minutes. For internal and weather-exposed external applications.
| >> Go to HENSOTHERM® 921 KS |
Concrete Fire Protection: HENSOTHERM® and HENSOMASTIK® Coating Systems
Upgrade concrete structures in conversions and brownfield data centres without increasing cross-sections
In many cases, concrete components achieve the required fire resistance through their structural design alone. However, where the component thickness or reinforcement position is insufficient, HENSOTHERM® 820 KS and HENSOMASTIK® B 3000 provide thin-film solutions for upgrading the fire resistance of floors, beams and columns.
The systems are particularly suitable for existing buildings, changes of use, construction deviations and deliberately optimised precast and prestressed concrete structures. They require very little additional construction depth and, depending on the component and system, can provide fire resistance periods of up to 240 minutes.
HENSOTHERM® 820 KS
Water-based intumescent 1K system for fire resistance periods of up to 240 minutes with low film thicknesses for dry internal areas of a data centre.
HENSOMASTIK® B 3000
Water-based ablative 1K system for fire resistance periods of up to 120 minutes with low film thicknesses for areas exposed to aggressive environmental conditions.
| >> Go to HENSOMASTIK® B 3000 |
Certified Fire Stopping Systems for Penetrations
Fire stopping: maintaining fire compartmentation despite high service densities
In data centres, numerous power, data, control and cooling services penetrate fire-resisting walls and floors between data halls, network, electrical, UPS, battery and technical areas. Every opening must be sealed so that the required fire resistance of the building element is restored.
HENSOTHERM® and HENSOMASTIK® fire stopping systems tested in accordance with DIN EN 1366-3 and classified in accordance with DIN EN 13501-2, with European Technical Assessments as well as national verification of usability and applicability, provide tested solutions for single-service penetrations and large mixed penetration seals – from individual cables and electrical conduits to cable trays and combustible, non-combustible and insulated cooling and service pipes.
Pre-assembled Service Transits, flexible pipe collars, re-penetrable mixed penetration soft seals and robust mortar seals enable planning to be adapted to the respective construction and fit-out phase. Reserve openings can be closed at an early stage and subsequently populated during later fit-out phases within the permissible system limits.

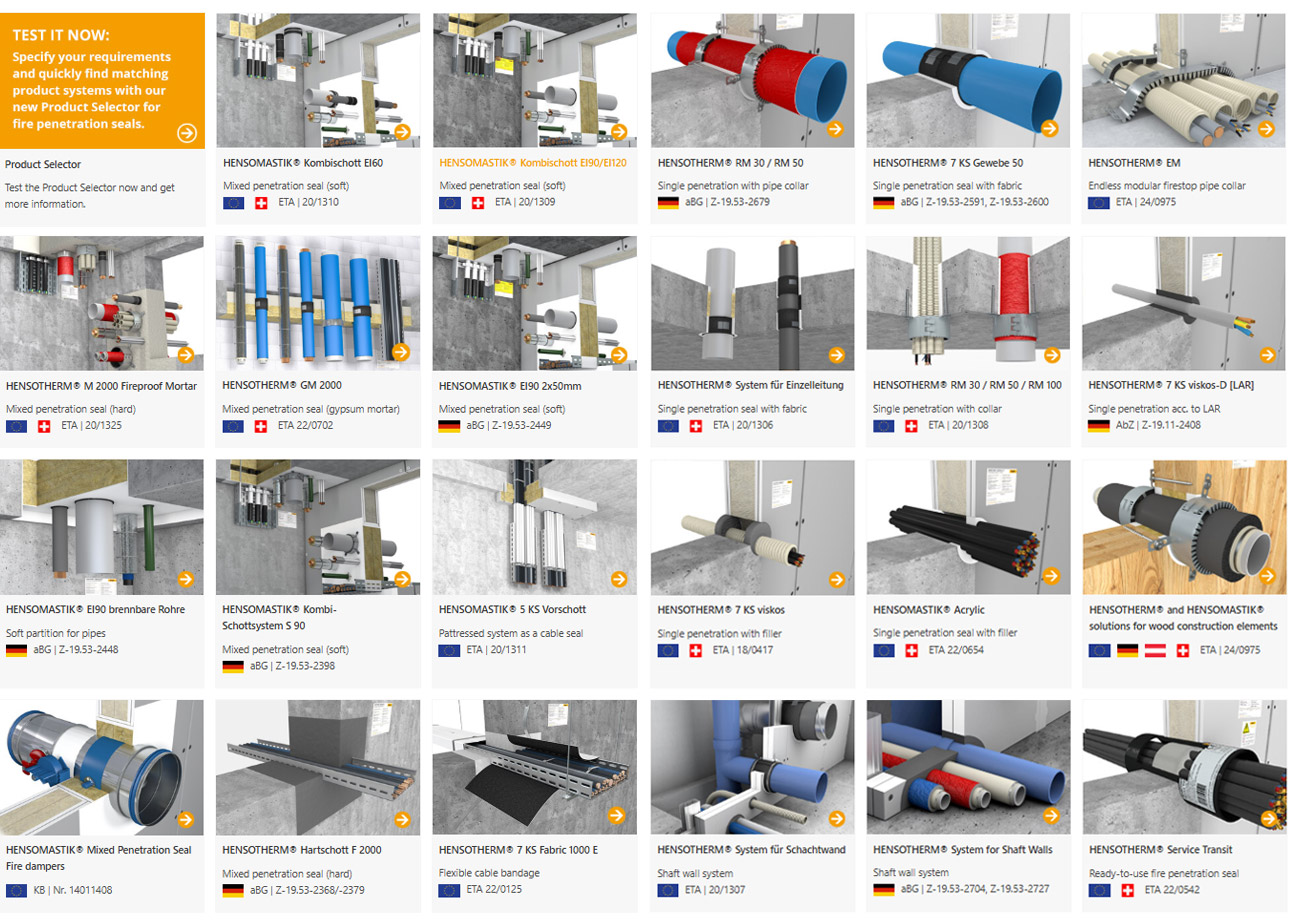

HENSOTHERM® and HENSOMASTIK® fire stopping systems
A penetration seal made from non-combustible materials can, in combination with intumescent materials, form an insulating barrier against heat and oxygen ingress and re-close openings in the building element left by combustible pipes or insulation that have burnt away.
| >> Go to the HENSOTHERM® fire stopping systems |
Certified Fire Protection Systems for Cables
Cable fire protection: HENSOMASTIK® 5 KS with FM Approval 3971
Large quantities of grouped power, control and data cables represent a particular fire load in data centres. HENSOMASTIK® 5 KS delays ignition and limits fire propagation along cables and cable support systems.
FM Approved under Class 3971 for Fire Protective Coatings for Grouped Electrical Cables* – a product class expressly recognised as a passive fire protection measure in the FM Property Loss Prevention Data Sheets for cable installations. FM Data Sheet 5-32 for Data Centers refers grouped power and data cables directly to these requirements.
* Application in accordance with the FM Approval Guide and manufacturer’s instructions.
| >> Go to HENSOMASTIK® 5 KS coating for cables |
C-FORM – BIM-Planned Fire Protection Recess for Fast and Coordinated Construction Processes
In fast-track data centre projects, numerous service penetrations must be planned at an early stage, coordinated across different trades and prepared for subsequent fit-out phases. C-FORM combines a precisely manufactured permanent formwork element produced by 3D concrete printing with an integrated HENSOMASTIK® fire stopping system.
The elements can already be assigned to specific openings, fire compartments and service types in the BIM model, manufactured on a project-specific basis and installed when the wall or floor slab is cast. This eliminates conventional formwork removal while defining the opening dimensions and fire stopping system during the structural construction phase.
Standardised C-FORM elements for cable trays, cooling pipes, mixed MEP services and reserve openings support repetitive construction processes and the phased fit-out of large data centres. Defining the fire stopping system at an early stage reduces interface risks, facilitates compliance with permissible distances and provides a reliable basis for execution, acceptance and digital as-built documentation.
Certified Fire Protection Systems for Fire-Resistant Joints
Fire protection for joints: maintaining fire compartmentation down to the last joint
Fire-resisting walls and floors can only fulfil their protective function if the joints and connections between the building elements are also properly sealed. Large data centres contain numerous linear joints, for example between lightweight partition walls and concrete floors, between solid building elements or at interfaces with the structural steelwork.
HENSOMASTIK® Acrylic provides tested fire protection solutions for horizontal and vertical wall, floor and ceiling joints as well as for different connections between solid, lightweight, steel and timber construction elements. Depending on the configuration, fire resistance classifications up to EI 120 and joint widths of up to 400 mm can be achieved.
The BIM planning template for Autodesk Revit makes it possible to select, position and dimension classified joint solutions directly in the building model. Integrated parameters and warnings support compliance with permissible joint widths, while prepared quantity take-offs facilitate specification, costing and material planning.
Additional testing for air permeability and sound insulation makes HENSOMASTIK® Acrylic particularly attractive for technically demanding data halls, network, energy and plant areas.
Durable Fire Protection Systems for Modern Data Centres
Sustainability is becoming increasingly important in data centre projects. Alongside energy efficiency, the selection of durable materials, low emissions, transparent documentation and consideration of the entire life cycle are playing an increasingly important role.
Rudolf Hensel develops fire protection systems that combine safety, durability and sustainability requirements. A long working life and high mechanical resistance can help to reduce maintenance, repair and renewal measures over the utilisation phase. At the same time, EPDs and further product information support transparent assessment and documentation within the project.
For Hensel, sustainability does not mean compromising on fire protection, but considering durable and resource-efficient solutions from the outset.
Sustainability aspects at a glance
- Durable systems to reduce maintenance and servicing requirements
- Water-based and low-emission technologies for suitable applications
- EPDs and material information for transparent project documentation
- Support with sustainability assessments and certification requirements
- Consideration of the working life and entire life cycle of coating systems
- High mechanical resistance to reduce damage and the need for repair work
- Systems for different fire protection and corrosion protection requirements
References – High-Performance Fire Protection for Demanding Steel Structures
Data centres place high demands on steel structures. In addition to the required fire resistance, corrosion protection, mechanical resistance and long-term durability play an important role.
With HENSOTHERM® and HENSOMASTIK® fire protection systems, Rudolf Hensel offers tested passive solutions for modern, high-performance and rapidly delivered data centres. They provide solutions that are convincing not only at the planning stage but are also designed for reliable and efficient implementation – from workshop coating through to installation and use.
Fire protection in a leisure pool
2K steel fire protection
Located in the heart of the city, the completely newly built school, sports and leisure pool NAUTILAND is Würzburg’s source of energy.
| >> Go to the Nautiland | Würzburg reference |
Kraanspoor Amsterdam
2K steel fire protection
A fascinating office building constructed on a historic concrete crane track on the site of the former NDSM shipyard.
| >> Go to the Kraanspoor | Amsterdam reference |
Department store becomes shopping centre
2K steel fire protection
The new two-storey THEO Shopping Centre has stood on the former Hertie site in the heart of Husum since October 2019.
| >> Go to the THEO | Husum reference |
