HENSOMASTIK® 5 KS Vorschott

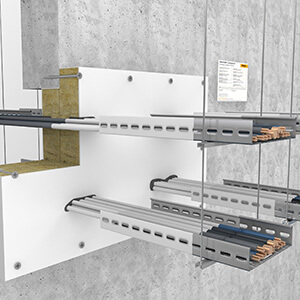

Pattress system as a cable seal (penetration seal) in solid walls and solid floors

The HENSOMASTIK® 5 KS Vorschott system is used as a one-sided penetration sealing for electrical cables (cables, cable bundles) to reconstruct the fire safety of solid walls and solid floors with structural openings for cables and cable bundles.

Product characteristics of HENSOMASTIK® 5 KS Vorschott system

Assessment ETA 19/0865, tested according to DIN EN 1366-3
Fire resistance class up to EI 120
Substrate: solid wall [thickness: ≥ 10 cm], solid floors [thickness: ≥ 15 cm]
Max. opening size up to 800 mm x 600 mm
Sealing of the structural opening with 2x ≥ 50 mm or 2x ≥ 60 mm thick mineral fibre boards already pre-coated on the outsides with HENSOMASTIK® 5 KS Farbe / viskos (viscous)
Annular gap filled with HENSOTHERM® 7 KS viskos
For indoor use and in open buildings (without driving rain!)
Solution for excessive cable occupation [> 60 %]
When totaly dry temperature resistant down to -20 °C

Advantages

Variant for restricted spaces and suitable for single sided access
No additional reveal frame needed
Multiple variants in solid walls and solid floors
Suitable for irregular aperture geometries
Application of HENSOMASTIK® 5 KS Farbe and HENSOMASTIK® 5 KS viskos with brush, roller or by airless spraying possible
Resistant against oil and petrol

Environment

Contains no solvents, silicons, halogens and plasticisers
Green Product Line, Non-VOC, VOC emissions class A+, AgBB-tested
Environmental product declaration no. EPD-RHG-20190171-IAA1-DE
Registration in the DGNB Navigator: CDDWRA
Very well suited for Minergie-(A-/P-)Eco / Correspond to priority 1 of Eco-BKP

Packaging sizes

HENSOMASTIK® 5 KS Farbe: 6.0 kg, 12.5 kg
HENSOMASTIK® 5 KS viskos: 6.0 kg, 12.5 kg
HENSOMASTIK® 5 KS SP (Spachtel): 6.0 kg, 12.5 kg, 310 ml cartridge
HENSOTHERM® 7 KS viskos: 310 ml cartridge, 600 ml tubular bag
Mineral fibre boards 600 x 1,000 x 50/60 mm, 150 kg/m³, one side already pre-coated with HENSOMASTIK® 5 KS
