HENSOTHERM® 7 KS viskos

Intumescent fire protection compound for pipes and cables

The intumescent fire protection compound HENSOTHERM® 7 KS viskos is supplied in cartridges and used as an annular gap seal for single penetrations and small fire penetration seals for pipes, cables, cable bundles or electrical cable conduits (with and without cables) with multiple lead-throughs to restore the fire safety of wall and floor structures. HENSOTHERM® 7 KS viskos was tested in accordance with EN 1366-3 with a fire resistance class up to EI 240 (see ETA 20/1306).

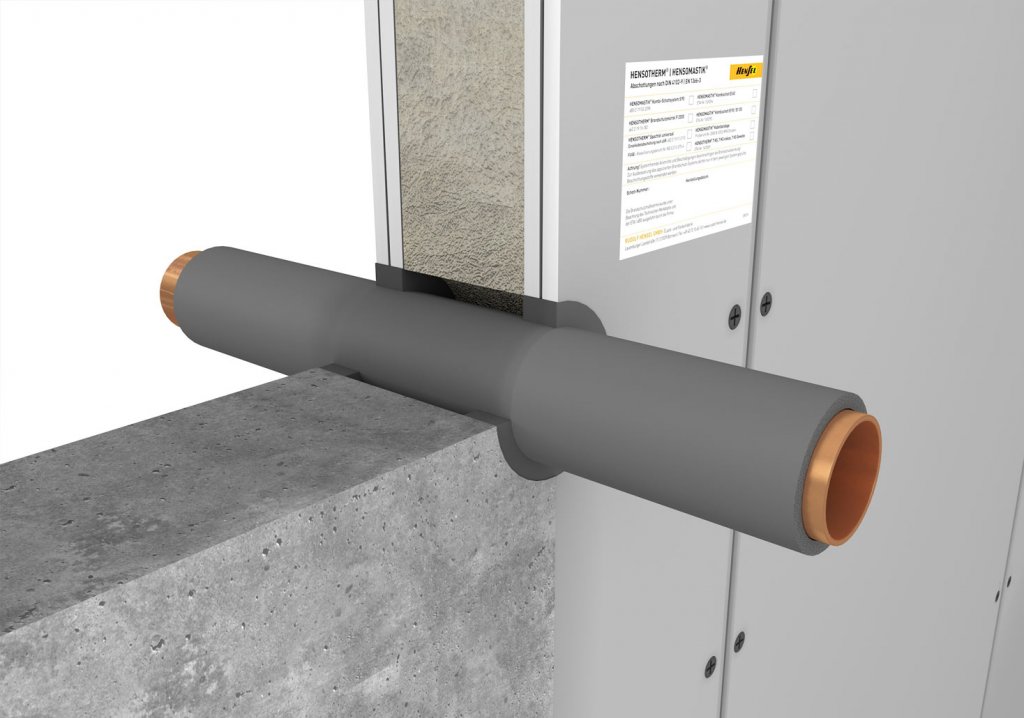

Single penetration of insulated metal pipe in wall

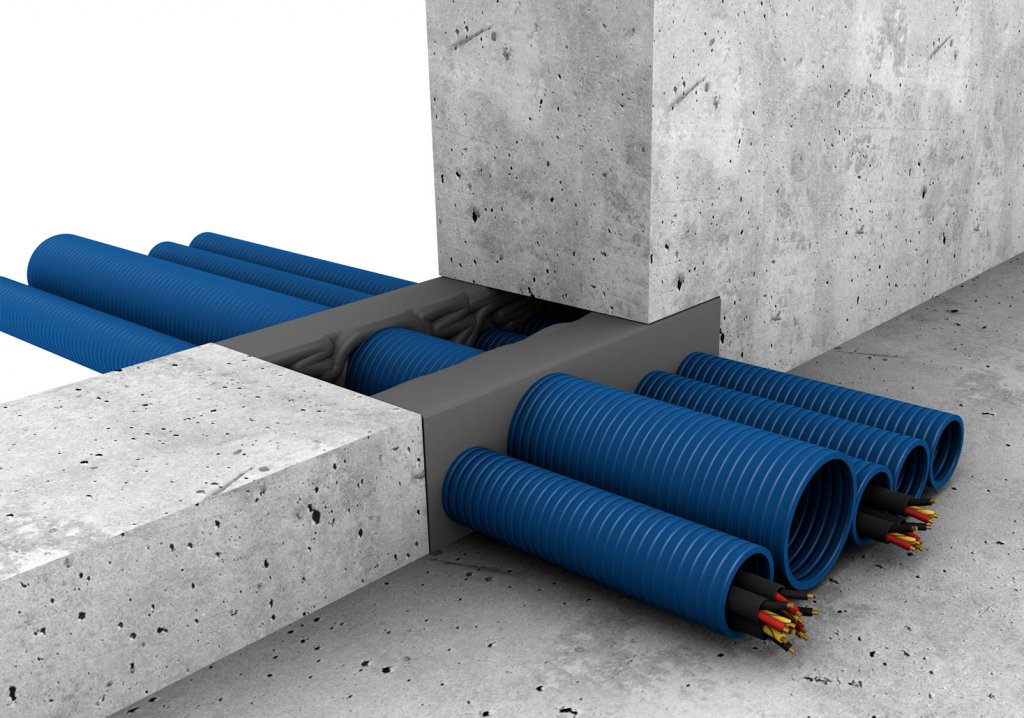

Multiple lead-throughs of electrical installation conduits

Single penetration of electrical installation conduit in floor

Single penetration of combustible pipe in floor

Properties

  • ETA 20/1306, tested in accordance with EN 1366-3
  • Fire resistance class up to EI 240
  • Construction elements: rigid and flexible walls [thickness: ≥ 10 cm], rigid floors [thickness: ≥ 15 cm]
  • Applications: Cables, cable bundles, EIP/flexible electrical installation conduits (with and without cables, single or multiple penetrations), combustible pipes up to DN 110 mm, aluminum composite pipes, non-combustible pipes with synthetic rubber insulation
  • Suitable for indoor use, damp rooms and in open buildings without driving rain


Advantages

  • Installation possible without mineral wool depending on the application
  • Simple and fast installation
  • Very economical solution
  • Combustible pipes up to DN 110 mm
  • Non-combustible pipes tested with a wide range of synthetic rubber insulation (fire rating ≥ D-s3, d0)
  • EIP/flexible electrical installation conduits with zero spacing


Environment

  • Solvent-, silicone-, halogen- and plasticizer-free
  • Green Product, VOC emission class A+
  • Meets the requirements of eco-bau 1 and Minergie-eco


Container sizes / packaging units

HENSOTHERM® 7 KS viskos in 310 ml cartridge

Application video: HENSOTHERM® 7 KS viskos – Intumescent fire protection compound for pipes and cables
