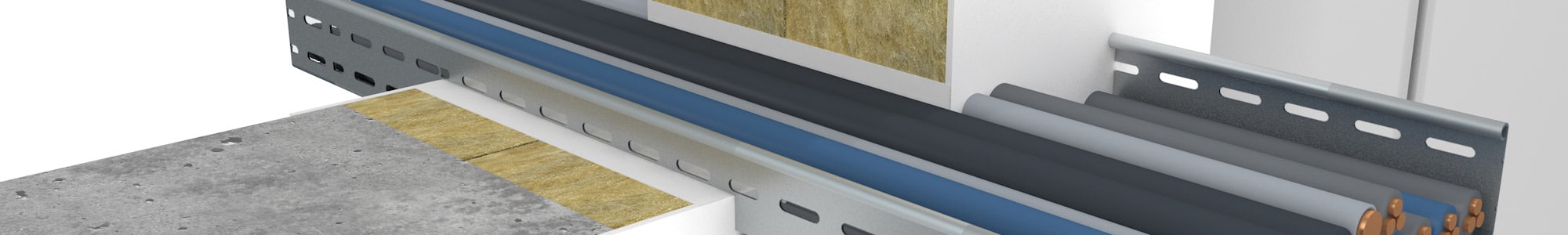

HENSOMASTIK® Acrylic Penetration Seal 2 x 50 mm for Cables

The HENSOMASTIK® Acrylic Penetration Seal 2 x 50 mm for Cables (ETA Nr. 23/0318) is a soft seal system comprising two min. 50 mm thick mineral fibre boards ≥ 150 kg/m³ used to form a firestop sealing to reinstate the fire resistance performance of flexible and rigid wall and rigid floor constructions, where they have been provided with apertures for the penetration of single or multiple electrical supply lines.

A blank fire penetration seal may also be installed, temporarily or permanently, as reserve for post-installations.

The HENSOMASTIK® Acrylic Penetration Seal 2 x 50 mm for Cables is supplied as packs of pre-coated boards with final dry film thickness with dimensions of 600 mm x 1000 mm. The mineral fibre boards are cut to size and friction fitted into the supporting element and around penetrating services. Any gap between mineral fibre boards and reveal is closed with HENSOMASTIK® Acrylic and a 20 mm wide circumferential coating is applied by smoothing out the excess material.

The annular gap around penetrating services is sealed with HENSOMASTIK® Acrylic in full depth. No coating of the penetrating services is required. A HENSOTHERM® Service Transit Type ST 250 in available diameters 63, 90 and 110 mm may be friction-fitted for quick post-installations.

As the mineral fibre boards are supplied already coated and ready to use, only HENSOMASTIK® Acrylic is still needed. This guarantees quick installation and makes firestopping with the HENSOMASTIK® Acrylic Penetration Seal 2 x 50 mm for Cables highly cost-effective!

Properties

• ETA 23/0318, tested in accordance with EN 1366-3
• Fire resistance class up to EI 120 in walls and floors
• Use categories / durability classes Y1 / Y2 / Z1 / Z2
• Creamy compound with good adhesion to mineral fibre boards
• Permanently elastic for movement compensation
• Colour: White

• No coating of cables required – Quick installation, highly cost-effective!
• Pre-coated boards available – Only HENSOMASTIK® Acrylic needed
• Simple to apply, surface can be smoothed out with a spatula
• HENSOTHERM® Service Transit (Type ST 250) can be friction-fitted for quick post-installations
• HENSOMASTIK® Acrylic can also be used to form single penetration seals (see ETA 22/0654)

• Construction elements: flexible and rigid walls ≥ 100 mm, rigid floors ≥ 150 mm
• Single cables DN ≤ 80 mm, cable bundles DN ≤ 100 mm
• Flexible electrical installation conduits DN ≤ 32 / single cable ≤ 21 mm
• Steel or PVC electrical installation pipes DN ≤ 32 / single cable ≤ 21 mm
• HENSOTHERM® Service Transit (Type ST 250) DN ≤ 110 mm
• Cable trays, ladders and support structures ≤ 500 mm
• Seal size up to 600 mm x 600 mm in walls and 1125 mm x 8250 mm in floors

• Green Product, AgBB-tested, VOC emission class A+
• Solvent-, silicone-, halogen- and plasticizer-free
• Low emissions – environmental and user friendly
• Non-hazardous formula, no dangerous SVHC components
• Does not contain any PBT or vPvB substances
• Meets the requirements of eco-bau 1 and Minergie-eco
• Emission class M1 for building materials compliant
• Also available in 300 ml and 600 ml alu-sleeves for less waste
